A Cantilever Snap Joint is one of the most widely used types of snap-fit joints in product design and manufacturing. This mechanical connection method offers a fast and efficient way to assemble two parts securely without the need for external fasteners such as screws or adhesives. In this article, we will dive deep into the design, working principle, benefits, and applications of a cantilever snap joint. Additionally, we will explore common challenges in designing cantilever snap joints and best practices for ensuring their success in product development.
What is a Cantilever Snap Joint?
A cantilever snap joint is a mechanical fastening method where a flexible cantilever arm with a hook or snap engages into a matching cavity in the other part. The process involves bending the cantilever arm temporarily as it moves into the cavity, and then it “snaps” back into its original shape to lock the two components together. This type of joint is particularly common in plastic products where flexibility and durability are key factors.
How Does a Cantilever Snap Joint Work?
The cantilever snap joint functions by utilizing the inherent flexibility of materials like plastic. When the two parts are aligned, the snap feature (typically a protruding hook or bead) engages with the corresponding depression in the mating component. Once the snap feature is fully inserted, the arm returns to its original position Securing the two parts without the need for additional fasteners.
During assembly, the cantilever arm temporarily deforms under pressure. As it bends, the interlocking feature moves into position When the pressure is released, the arm returns to its neutral state. This deformation and the subsequent return to the original shape provide a tight, secure connection.
Advantages of Cantilever Snap Joints
There are several key reasons why cantilever snap joints are preferred in many manufacturing processes, especially in the production of plastic components.
Cost-Effectiveness
The cantilever snap joint is cost-effective, primarily because it eliminates the need for additional fasteners like screws, nuts, or bolts. This not only saves money but also reduces the complexity of the assembly process.
Ease of Assembly and Disassembly
Cantilever snap joints allow for quick assembly and disassembly without the need for special tools. This makes them highly useful in industries where frequent assembly and disassembly are required, such as in consumer electronics or packaging.
Read more: La chat
Durability and Reusability
One of the most significant benefits of the cantilever snap joint is its reusability. Unlike traditional fasteners, snap joints can often be used multiple times without compromising the joint’s strength. The flexible arm can withstand numerous assembly and disassembly cycles, making it ideal for products that need to be opened and closed regularly, like Tupperware or reusable containers.
Aesthetic Appeal
Because cantilever snap joints do not require external fasteners, they are hidden within the product, offering a cleaner and more aesthetically pleasing design. This is especially important in products where appearance is a major consideration, such as consumer electronics or automotive parts.

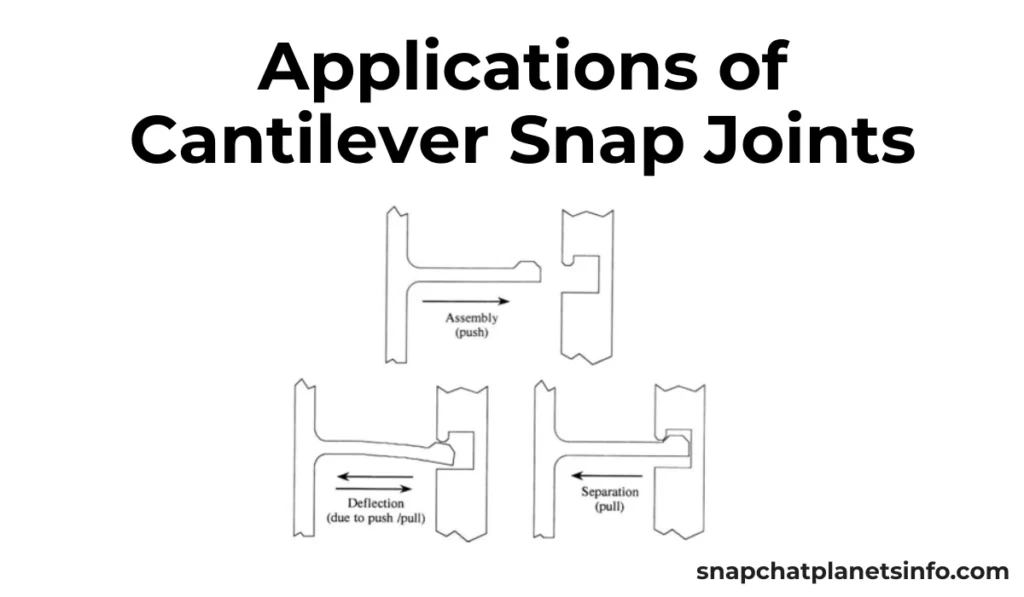

Applications of Cantilever Snap Joints
Cantilever snap joints are commonly used in various industries, thanks to their efficiency, cost-effectiveness, and versatility. Below are some typical applications:
Consumer Electronics
In the realm of consumer electronics, cantilever joints are often used in the assembly of enclosures, covers, and battery compartments. These snap joints help to create secure, tool-free connections, making the assembly process faster and less expensive.
Packaging
Cantilever joints are widely used in packaging, especially for plastic containers and product packaging. Their ability to create a secure seal without the need for additional adhesives or fasteners makes them. Ideal for packaging products such as food containers, bottles, and medical supplies.
Automotive Industry
In the automotive industry, cantilever snap joints are used to assemble various internal components, including panels, trim pieces, and covers. These joints can withstand vibration and impact, making them perfect for automotive parts that need to remain secure under dynamic conditions.
Toys and Household Goods
Toys and other household goods often use cantilever joints in their assembly. The simplicity of the design and ease of use make it a preferred choice for connecting parts in products like toys, kitchen appliances, and home decor items.
Design Considerations for Cantilever Snap Joints
When designing a cantilever snap joint, there are several factors to consider to ensure the joint is durable, functional, and easy to manufacture.
Material Selection
The material used for the cantilever joint is crucial to its performance. Typically, plastics like ABS, polycarbonate, or nylon are chosen because of their flexibility and durability. The material should have the right balance of stiffness and flexibility to ensure the cantilever arm can deform without breaking and return to its original shape after assembly.
Tapered Design
One of the key design considerations for cantilever snap joints is tapering the arm. By tapering the cross-section of the cantilever beam along its length, the joint can distribute stress more evenly and reduce the likelihood of stress concentrations that could lead to joint failure.
Clip Width and Stiffness
The width of the clip in the cantilever joint plays a significant role in the joint’s overall strength and stiffness. A wider clip increases the strength of the joint, but it can also impact the amount of force required for assembly. Designers often experiment with different widths to find the ideal balance between strength and ease of assembly.
Challenges in Designing Cantilever Snap Joints
While cantilever snap joints offer many advantages, they are not without challenges. Some common issues that designers may face include:
Over-Extension
One of the main risks associated with cantilever joints is the potential for over-extension of the arm. If the arm is bent too far during assembly, it may not return to its original shape, which can lead to permanent deformation or failure of the joint.
Stress Concentrations
The areas where the cantilever arm bends are prone to stress concentrations. Over time, repeated bending can cause fatigue and eventual failure of the joint. To mitigate this, engineers often incorporate fillets or smooth curves at these stress points to reduce the concentration of forces.
Environmental Factors
The performance of cantilever joints can be affected by environmental factors such as temperature, humidity, and chemical exposure. In applications where the joint will be exposed to harsh conditions, it is essential to select materials that are resistant to these environmental factors.
Best Practices for Designing Durable Cantilever Snap Joints
To ensure the cantilever snap joint is both durable and reliable, it is essential to follow best design practices:
- Use Tapered Arms: Tapering the cantilever arm helps distribute stress more evenly, preventing failure from stress concentrations.
- Select the Right Material: Choose materials that have the right balance of stiffness and flexibility for the specific application.
- Test the Clip Width: Experiment with different clip widths to ensure that the joint is strong enough while still being easy to assemble.
- Smooth Stress Points: Avoid sharp angles in the cantilever arm, as these can create stress concentrations that may lead to failure.
Read more: Roleplay ai chat bot free
Frequently Asked Questions (FAQs)
What is a cantilever snap joint?
A cantilever snap joint is a type of mechanical connection where a flexible arm with an interlocking feature snaps into a matching cavity, securing two components without the need for external fasteners.
What materials are best for cantilever snap?
Materials like ABS, polycarbonate, and nylon are commonly used for cantilever snap joints due to their flexibility, durability, and ease of manufacturing.
Can cantilever snap joints be reused?
Yes, cantilever snap are reusable, allowing for assembly and disassembly multiple times without losing their strength or functionality.
What are the common challenges in designing cantilever snap?
Common challenges include overextension of the arm, stress concentrations at the bending points, and environmental factors that could affect the material’s performance.
Conclusion
The cantilever snap joint is a versatile and cost-effective solution for securing components in a wide variety of industries. By leveraging its simple yet effective design, manufacturers can streamline the assembly process and reduce the need for additional fasteners. However, careful attention must be given to material selection, joint design, and stress management to ensure long-term durability and reliability.
When designed and executed properly, the cantilever snap joint can significantly enhance both the functionality and appearance of products.
